Product Description:

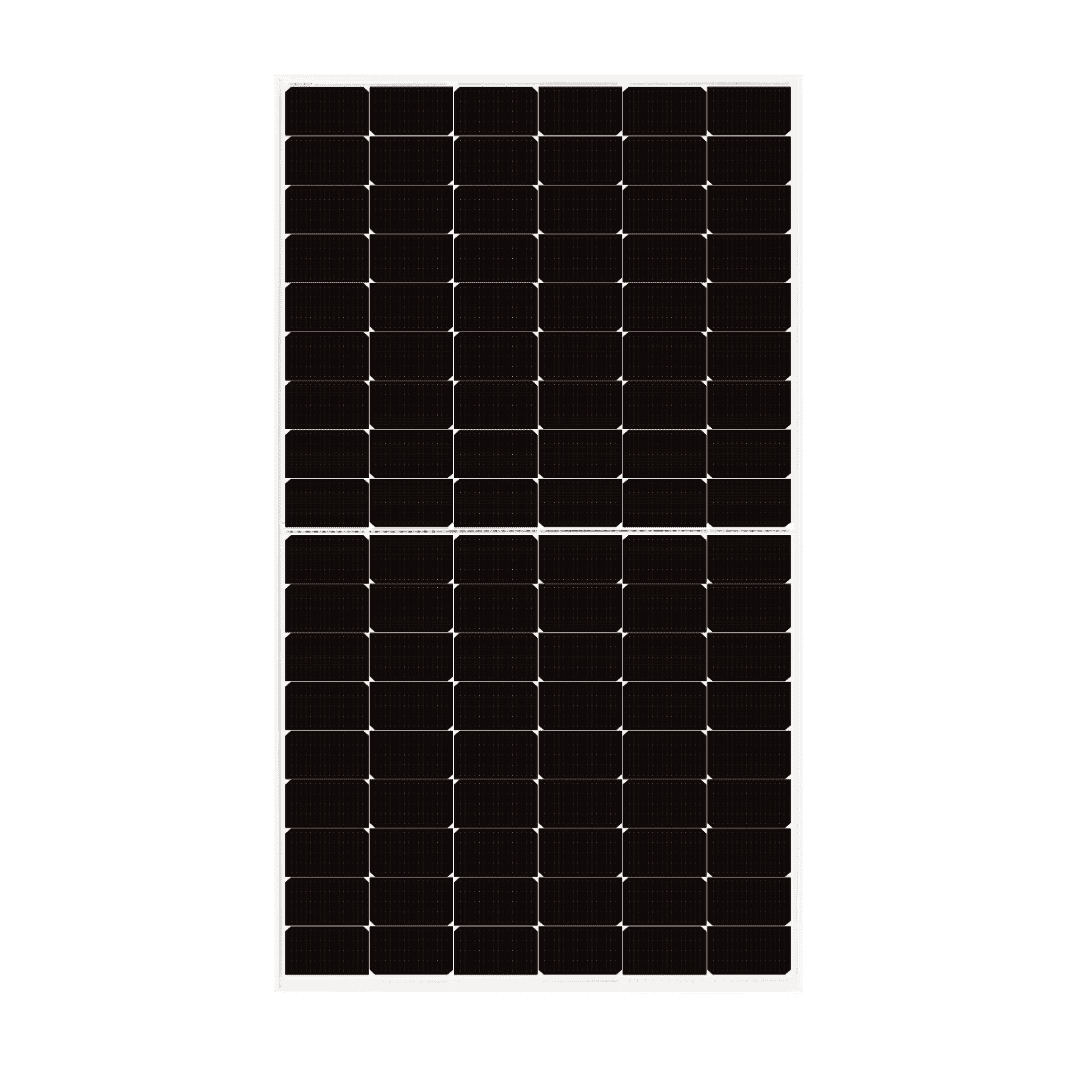

The Jinko 485W Half-Cut Monocrystalline Solar Panel is a high-performance, energy-efficient module designed for maximum power output and durability. Featuring advanced half-cut cell technology, it reduces resistive losses and enhances efficiency, even in low-light conditions. With a robust design and high module conversion efficiency, this solar panel is perfect for residential, commercial, and industrial solar power systems.
Key Features:
- 485W power output for high energy generation
- Half-cut cell technology for improved efficiency and reduced power loss
- Monocrystalline cells for superior performance in various weather conditions
- High module conversion efficiency for optimized energy production
- Anti-reflective and anti-soiling surface minimizes power loss from dirt and dust
- Excellent performance in low-light and high-temperature environments
- PID-resistant and durable for long-term reliability
- Strong resistance to wind loads (up to 2400 Pa) and snow loads (up to 5400 Pa)
- Multi-busbar technology for enhanced energy efficiency
- Long lifespan with a 25-year linear power output warranty
- Compatible with grid-tied and off-grid solar systems
- Certified to meet international safety and quality standards
Specifications:
- Power Output: 485W
- Cell Type: Monocrystalline
- Efficiency: Up to 21%
- Panel Type: Half-Cut Technology
- Voltage at Maximum Power (Vmp): ~41V
- Current at Maximum Power (Imp): ~11.83A
- Open Circuit Voltage (Voc): ~49V
- Short Circuit Current (Isc): ~12.5A
- Dimensions: Approx. 2094mm x 1038mm x 35mm
- Weight: Approx. 26kg
- Frame: Anodized aluminum alloy
- Glass: Tempered glass with anti-reflective coating
- Operating Temperature: -40°C to +85°C
- Warranty: 25-year linear power warranty, 12-year product warranty
