Product Description

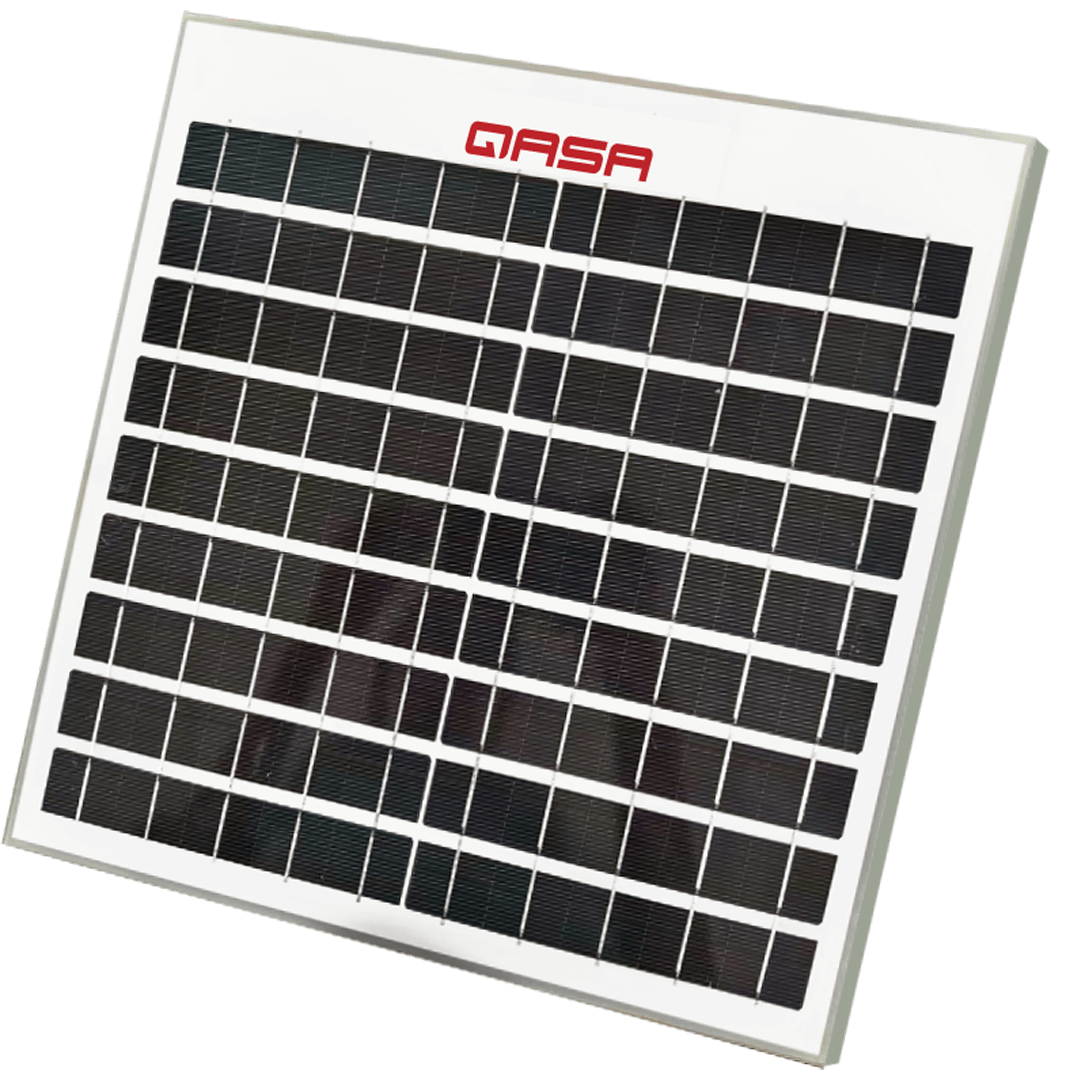

The Qasa 10W 9V Solar Panel (QSP-10W9) utilizes high-efficiency monocrystalline solar cells to provide reliable energy generation for small-scale applications. With a compact design and robust construction, this panel is perfect for portable power solutions.
Key Features
- Maximum power output of 10W for efficient energy production.
- Nominal voltage of 9V, ideal for charging various small devices.
- Lightweight design at only 1.02 kg for easy transport and installation.
- Durable aluminum frame (17mm) ensures stability and longevity.
- High-quality EVA laminate for enhanced weather resistance.
- Open circuit voltage of 10.8V for optimal performance.
- Short circuit current of 1.19A, providing dependable power supply.
- Maximum operating temperature range of -40°C to +85°C for diverse climates.
- Comes with 5 meters of 2*0.25mm² installation wire for easy setup.
- Connector type: 5.5mm DC for compatibility with various systems.
- Compact dimensions of 350 x 290 x 17 mm for space-saving installation.
- Eco-friendly energy solution, reducing reliance on fossil fuels.
Specifications
- Maximum Power: 10W
- Maximum Power Voltage (Vmp): 9V
- Maximum Power Current (Imp): 1.11A
- Open Circuit Voltage (Voc): 10.8V
- Short Circuit Current (Isc): 1.19A
- Maximum Temperature: -40°C to +85°C
- Aluminum Frame: 17mm
- Laminate Material: EVA
- Dimensions: 350 x 290 x 17 mm
- Installation Wire Size: 2*0.25mm², 5m length
- Copper Wires: A=B=6mm
- Weight: 1.02 kg
- Connector Type: 5.5mm DC
