Product Description

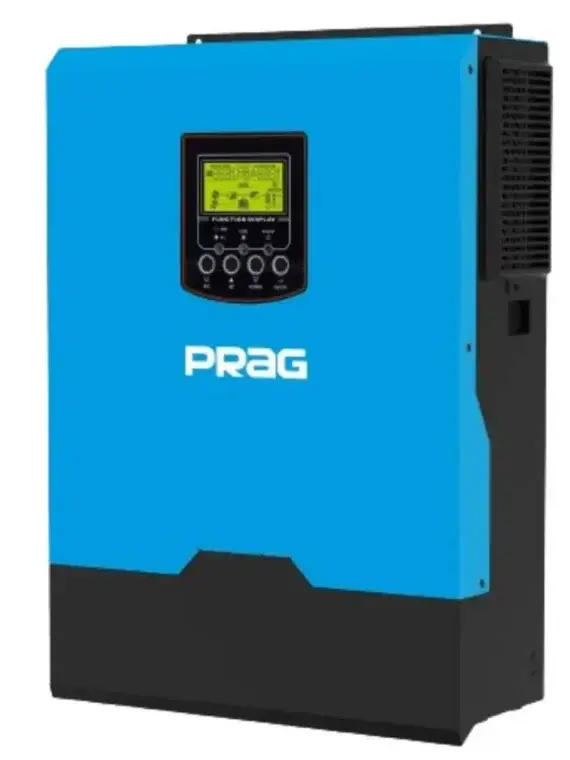

The Prag 3KW Premium Solar Inverter is engineered for high efficiency and reliability. It features a pure sine wave output, ensuring compatibility with sensitive electronics. Equipped with an inbuilt MPPT solar charger, it maximizes solar energy harvesting. The inverter also boasts a customizable LED status ring with RGB lights and a user-friendly 4.3-inch colored LCD touchscreen. It includes built-in WiFi for remote monitoring via a mobile app, supports USB On-the-Go functionality, and has data logging capabilities. With a battery-independent design and battery equalization, it enhances battery life and performance.
Key Features
- Pure sine wave output for smooth performance with sensitive devices.
- Inbuilt MPPT solar charger for optimized energy conversion.
- Customizable RGB LED status ring for visual indication.
- User-friendly 4.3-inch colored LCD touchscreen for easy operation.
- Built-in WiFi for mobile monitoring on Android/iOS.
- Supports USB On-the-Go functionality for versatile connectivity.
- Data logging for event tracking and performance analysis.
- Reserved communication ports (RS485, CAN-BUS, RS232) for BMS integration.
- Battery independent design enhances flexibility and ease of use.
- Battery equalization feature extends the lifecycle of the batteries.
- Enhanced charging power for faster energy replenishment.
- Optional anti-dusk kit to protect against environmental debris.
Specifications
- Model: 3.6K-24
- Power Rating: 3600W
- Input Voltage: 230 VAC
- Selectable Voltage Range: 170 – 280 VAC (PC); 90-280 VAC (home appliances)
- Frequency Range: 50/60 Hz (auto sensing)
- Output AC Voltage Regulation (Battery Mode): 230 VAC ± 5%
- Total Harmonic Distortion (THDv): 3% (linear load), 8% (non-linear load)
- Peak Efficiency: 90% – 93%
- Surge Power: 7200 VA
- Transfer Time: 15 ms (PC); 20 ms (home appliances)
- Battery Voltage: 24 VDC
- Maximum PV Array Open Circuit Voltage: 500 VDC
- Maximum PV Array Power: 4000 W
- Maximum Solar Charge Current: 120 A
- Dimensions: 119 x 313.6 x 422.8 mm
- Net Weight: 10 kg
