Product Description:

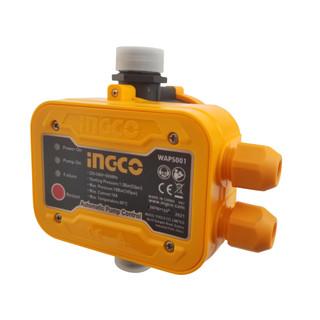

The INGCO Automatic Pump Control WAPS001 is a high-quality, efficient solution designed to manage and control water pumps automatically. Ideal for home, agricultural, and industrial water systems, this automatic pump control ensures your pump operates only when required, helping conserve energy and reduce wear. With a built-in pressure sensor and advanced electronic control, the WAPS001 provides precise and reliable pump control by monitoring water pressure levels, activating and deactivating the pump as needed. It's easy to install, durable, and suitable for use with most submersible or surface water pumps, providing both automatic operation and protection.
Key Features:
Automatic On/Off function – The system automatically turns the pump on when water pressure drops below the preset level and shuts it off when the pressure reaches the desired level.
Integrated pressure sensor – Monitors water pressure in real-time for smooth operation and energy efficiency.
Compact and durable design – Built to last with weather-resistant materials for outdoor and indoor use.
Overload protection – Safeguards the pump by preventing damage due to overuse or malfunction.
Dry-run protection – Protects the pump from running dry and causing motor damage by sensing when no water is available.
LED indicators – Clear LED indicators for power and operation status, helping with troubleshooting and monitoring.
Pressure adjustment – Allows users to adjust the pressure setting to match their system's requirements.
Easy installation – Designed for simple installation with standard pipe fittings, no complex setup required.
Energy-efficient – Automatically ensures the pump operates only when necessary, minimizing power consumption.
Versatile application – Suitable for use with submersible pumps, jet pumps, and surface pumps in domestic, industrial, or agricultural water systems.
Corrosion-resistant housing – Ensures long-term reliability and performance in tough environments.
User-friendly operation – Simplifies pump control without the need for manual intervention.
Built-in protection features for pump longevity and efficient water management.
Specifications:
Power Supply: 220-240V AC
Frequency: 50Hz
Max Pump Capacity: 1.5 kW (depending on pump size)
Pressure Range: 1.5 to 6 bars (adjustable)
Operating Temperature: 0°C to 60°C
Max Current: 10A
Protection Features: Overload protection, dry-run protection
Control Type: Automatic pressure switch
LED Indicators: Power, operation, fault
Dimensions: 190mm x 120mm x 60mm (approx.)
Weight: 0.7 kg (approx.)
Material: High-quality plastic housing
Applications: Suitable for controlling submersible, surface, and jet pumps in residential, agricultural, and industrial settings.
